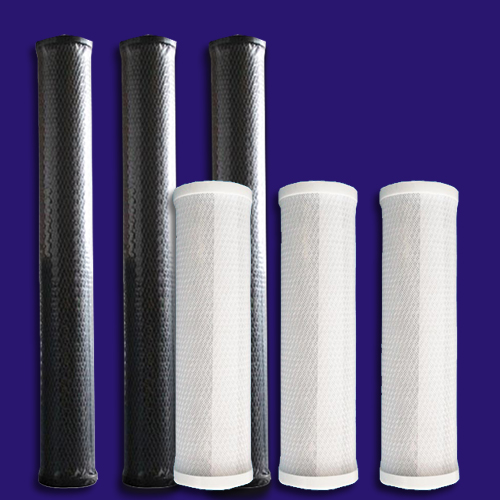

Carbon Filter Cartridge

Dimensions: Outside diameter: 68mm, 115mm

Inside diameter: 28mm

Length: 9.75",9.87",10", 20", or up to customers’ requirements

■ Material of Constructions:Filter media: Carbon Powder End cap: PP Gasket: EPDM Netting: Polyethylene

■ Performance:Micron Rating:0.5µm,1µm, 5µm,10µm

Maximum operating temperature: 52°C

Maximum operating pressure: 10Bar

Maximum differential pressure: 7 Bar at 20°C
